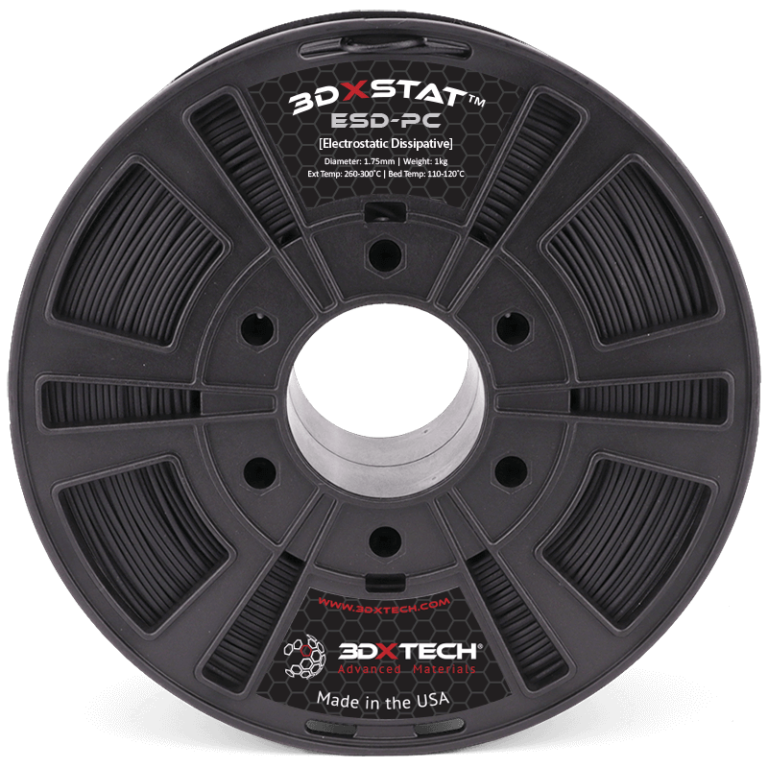

3DXSTAT ESD-PC
- Description
Description
3DXSTAT™ ESD-Safe Polycarbonate (ESD PC) 3D Printing Filament
3DXSTAT™ ESD PC is an advanced ESD-Safe compound designed for use in critical applications which require electrostatic discharge (ESD) protection. Made using cutting-edge multi-wall carbon nanotube technology, state of the art compounding technology, and precision extrusion processes. Target surface resistance of 10^7 to 10^9 Ohm.
Gearbox HT2™ 3D Printer: Print industrial-grade parts using our ESD PC and more with the new Gearbox™ HT2 High-Temp 3D Printer.
Print Recommendations
![3DXSTAT ESD-PC Ext Temp 1 Ext Temp 1](https://www.3dxtech.com/wp-content/uploads/2021/01/Ext-Temp-1-1024x1024.jpg)
Extruder Temp
260-300°C
![3DXSTAT ESD-PC Bed Temp Bed Temp](https://www.3dxtech.com/wp-content/uploads/2021/01/Bed-Temp-1024x1024.jpg)
Bed Temp
110-120°C
![3DXSTAT ESD-PC Chamber Temp Chamber Temp](https://www.3dxtech.com/wp-content/uploads/2021/01/Chamber-Temp-1024x1024.jpg)
Heated Chamber
Recommended
![3DXSTAT ESD-PC Nozzle Settings Nozzle Settings](https://www.3dxtech.com/wp-content/uploads/2021/01/Nozzle-Settings-1024x1024.jpg)
Nozzle Specs
No special concerns
![3DXSTAT ESD-PC Bed Adhesion Bed Adhesion](https://www.3dxtech.com/wp-content/uploads/2021/01/Bed-Adhesion-1024x1024.jpg)
Bed Adhesion
Magigoo Bed Prep
Polyimide Tape
![3DXSTAT ESD-PC Layer Height Layer Height](https://www.3dxtech.com/wp-content/uploads/2021/01/Layer-Height-1024x1024.jpg)
Layer Height
No special concerns
![3DXSTAT ESD-PC Drying Filamen Drying Filamen](https://www.3dxtech.com/wp-content/uploads/2021/01/Drying-Filamen-1024x1024.jpg)
Drying Specs
120°C for 4 hours
![3DXSTAT ESD-PC Water Soluble Support Water Soluble Support](https://www.3dxtech.com/wp-content/uploads/2021/03/Water-Soluble-Support-1024x1024.jpg)
Supports
Water Soluble Support
Benefits of Polycarbonate (PC) Include:
- High thermal properties including a Tg of 147°C
- Amorphous structure gives low, near isotropic shrinkage
- Excellent ductility and impact resistance
- Very low odor emitted while printing
- Wide processing range of 265-300°C
Benefits of 3DXSTAT™ Include
- Consistent surface resistivity
- Improved retention of impact & elongation
- Low particulate contamination
- Minimal contribution to outgassing and ionic contamination
![3DXSTAT ESD-PC iconfinder 1 02 511559 Technical Data Sheet](https://www.3dxtech.com/wp-content/uploads/2020/11/iconfinder_1-02_511559-300x300.png)
TECHNICAL DATA SHEET
Click to open this material’s TDS.
![3DXSTAT ESD-PC iconfinder 1 02 511559 Safety Data Sheet](https://www.3dxtech.com/wp-content/uploads/2020/11/iconfinder_1-02_511559-300x300.png)
SAFETY DATA SHEET
Click to open this material’s SDS.
Typical ESD PC Applications Include:
- Semi-con: HDD Components, Wafer Handling, Jigs, Casings, & Connectors
- Industrial: Conveying, Metering, and Sensing Applications
Target Conductivity for 3DXSTAT ESD PC:
- 10^7 to 10^9 ohm surface resistivity on 3DP sample using concentric ring test method.
- Note: Internal studies have indicated that increased extruder temperatures can achieve higher levels of conductivity. Likewise, lower extruder temperatures have resulted in lower levels of conductivity. Each printer is set-up differently, not to mention varied part geometry. Therefore, expect some trial time to understand how ESD PC filament works in your specific printer and application.
Surface Conductivity as a Function of Extruder Temperature:
The surface resistance of the printed ESD PC part will vary depending on the printer’s extruder temperature. For example, if your testing indicates the part is too insulative, then increasing the extruder temperature will result in improved conductivity. Therefore, the surface resistance can be ‘dialed-in’ by adjusting the extruder temperature up or down depending on the reading you receive on your part.
![3DXSTAT ESD-PC esd pc polycarbonate resistance esd pc polycarbonate resistance](https://www.3dxtech.com/wp-content/uploads/2020/12/esd-pc-polycarbonate-resistance.png)
Filament Specifications:
1.75mm and 2.85mm +/- 0.05mm in diameter
Recommended Print Settings:
- Extruder: 260-300°C
- Bed Temp: 110-120°C
- Bed Prep: Magigoo Bed Prep or 3DXTECH Polyimide Tape gives us the best results
- Heated Chamber: Recommended, a chamber helps reduce warping and improves layer adhesion
- Supports: AquaTek™ water soluble X1 USM Universal Support Material works ideal for complex parts
- Drying Instructions: 120°C for 4 hours.
