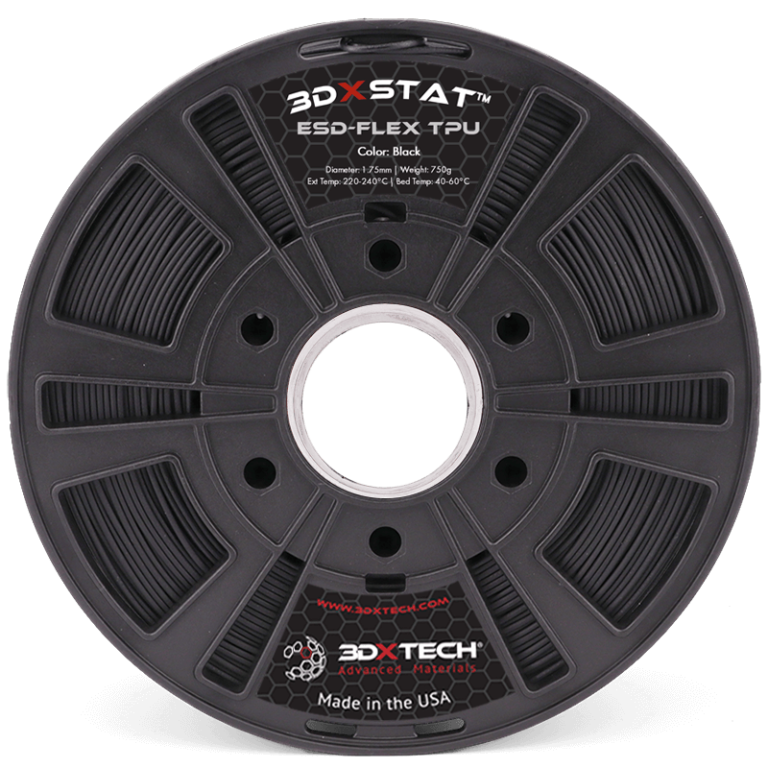

3DXSTAT ESD-FLEX [TPU] 3D FILAMENT
3DXSTAT™ ESD-Flex TPU 90A [Thermoplastic Polyurethane] elastomer is an engineering-grade thermoplastic favored for its balance of excellent flexibility, ESD-safety, ease of printing, chemical resistance, and toughness.
- Description
Description
3DXSTAT™ ESD-Flex TPU 3D Printing Filament
3DXSTAT™ ESD-Flex TPU [90A] [thermoplastic polyurethane] elastomer is an engineering-grade thermoplastic chosen for its balance of excellent flexibility, ease of printing, chemical resistance, and toughness. 3DXSTAT™ ESD Flex elastomeric filament has been formulated to offer ESD-Safe electrical conductivity with a target surface resistance of 10^3 Ohm.
Print Recommendations
![3DXSTAT ESD-Flex [TPU] 3D Filament Ext Temp 1 Ext Temp 1](https://www.3dxtech.com/wp-content/uploads/2021/01/Ext-Temp-1-1024x1024.jpg)
Extruder Temp
220-240°C
![3DXSTAT ESD-Flex [TPU] 3D Filament Bed Temp Bed Temp](https://www.3dxtech.com/wp-content/uploads/2021/01/Bed-Temp-1024x1024.jpg)
Bed Temp
40-60°C
![3DXSTAT ESD-Flex [TPU] 3D Filament Chamber Temp Chamber Temp](https://www.3dxtech.com/wp-content/uploads/2021/01/Chamber-Temp-1024x1024.jpg)
Heated Chamber
Not required
![3DXSTAT ESD-Flex [TPU] 3D Filament Nozzle Settings Nozzle Settings](https://www.3dxtech.com/wp-content/uploads/2021/01/Nozzle-Settings-1024x1024.jpg)
Nozzle Specs
No special concerns
![3DXSTAT ESD-Flex [TPU] 3D Filament Bed Adhesion Bed Adhesion](https://www.3dxtech.com/wp-content/uploads/2021/01/Bed-Adhesion-1024x1024.jpg)
Bed Adhesion
Hair Spray on
Magigoo Bed Prep
![3DXSTAT ESD-Flex [TPU] 3D Filament Layer Height Layer Height](https://www.3dxtech.com/wp-content/uploads/2021/01/Layer-Height-1024x1024.jpg)
Layer Height
No special concerns
![3DXSTAT ESD-Flex [TPU] 3D Filament Drying Filamen Drying Filamen](https://www.3dxtech.com/wp-content/uploads/2021/01/Drying-Filamen-1024x1024.jpg)
Drying Specs
65°C for 4 hours
![3DXSTAT ESD-Flex [TPU] 3D Filament Water Soluble Support Water Soluble Support](https://www.3dxtech.com/wp-content/uploads/2021/03/Water-Soluble-Support-1024x1024.jpg)
Supports
Water Soluble Support
Benefits of Flexible TPU Include:
- High elongation, over 300%
- Shore 90A semi-flex hardness
- Ease of printing compared to similar flexible materials
- Excellent layer bonding
- Outstanding fatigue resistance
- Very low odor while printing
- Low moisture absorption
- Retains flexibility even at low temperatures
- Styrene and BPA free
Benefits of 3DXSTAT™ Include
- Consistent surface resistivity
- Improved retention of impact & elongation
- Low particulate contamination
- Minimal contribution to outgassing and ionic contamination
![3DXSTAT ESD-Flex [TPU] 3D Filament iconfinder 1 02 511559 Technical Data Sheet](https://www.3dxtech.com/wp-content/uploads/2020/11/iconfinder_1-02_511559-300x300.png)
TECHNICAL DATA SHEET
Click to open this material’s TDS.
![3DXSTAT ESD-Flex [TPU] 3D Filament iconfinder 1 02 511559 Safety Data Sheet](https://www.3dxtech.com/wp-content/uploads/2020/11/iconfinder_1-02_511559-300x300.png)
SAFETY DATA SHEET
Click to open this material’s SDS.
Typical ESD Flex Applications Include:
- Semi-con: HDD Components, Wafer Handling, Jigs, Casings, & Connectors
- Industrial: Conveying, Metering, and Sensing Applications
Target Conductivity for 3DXSTAT ESD Flex:
- 10^3 ohm surface resistivity on 3DP sample using concentric ring test method.
- Note: Internal studies have indicated that increased extruder temperatures can achieve higher levels of conductivity. Likewise, lower extruder temperatures have resulted in lower levels of conductivity. Each printer is set-up differently, not to mention varied part geometry. Therefore, expect some trial time to understand how ESD Flex filament works in your specific printer and application.
Surface Conductivity as a Function of Extruder Temperature:
The surface resistance of the printed ESD Flex part will vary depending on the printer’s extruder temperature. For example, if your testing indicates the part is too insulative, then increasing the extruder temperature will result in improved conductivity. Therefore, the surface resistance can be ‘dialed-in’ by adjusting the extruder temperature up or down depending on the reading you receive on your part.
Filament Specifications:
1.75mm and 2.85mm +/- 0.05mm in diameter
Recommended ESD Flex Print Settings:
- Extruder: 220-240°C
- Bed Temp: 40-60°C
- Bed Prep: Hairspray on top of a layer of Magigoo Bed Prep gives us the best results.
- Heated Chamber: Not required
- Supports: AquaTek™ water soluble X1 USM Universal Support Material works ideal for complex parts
- Drying Instructions: 65°C for 4 hours.
