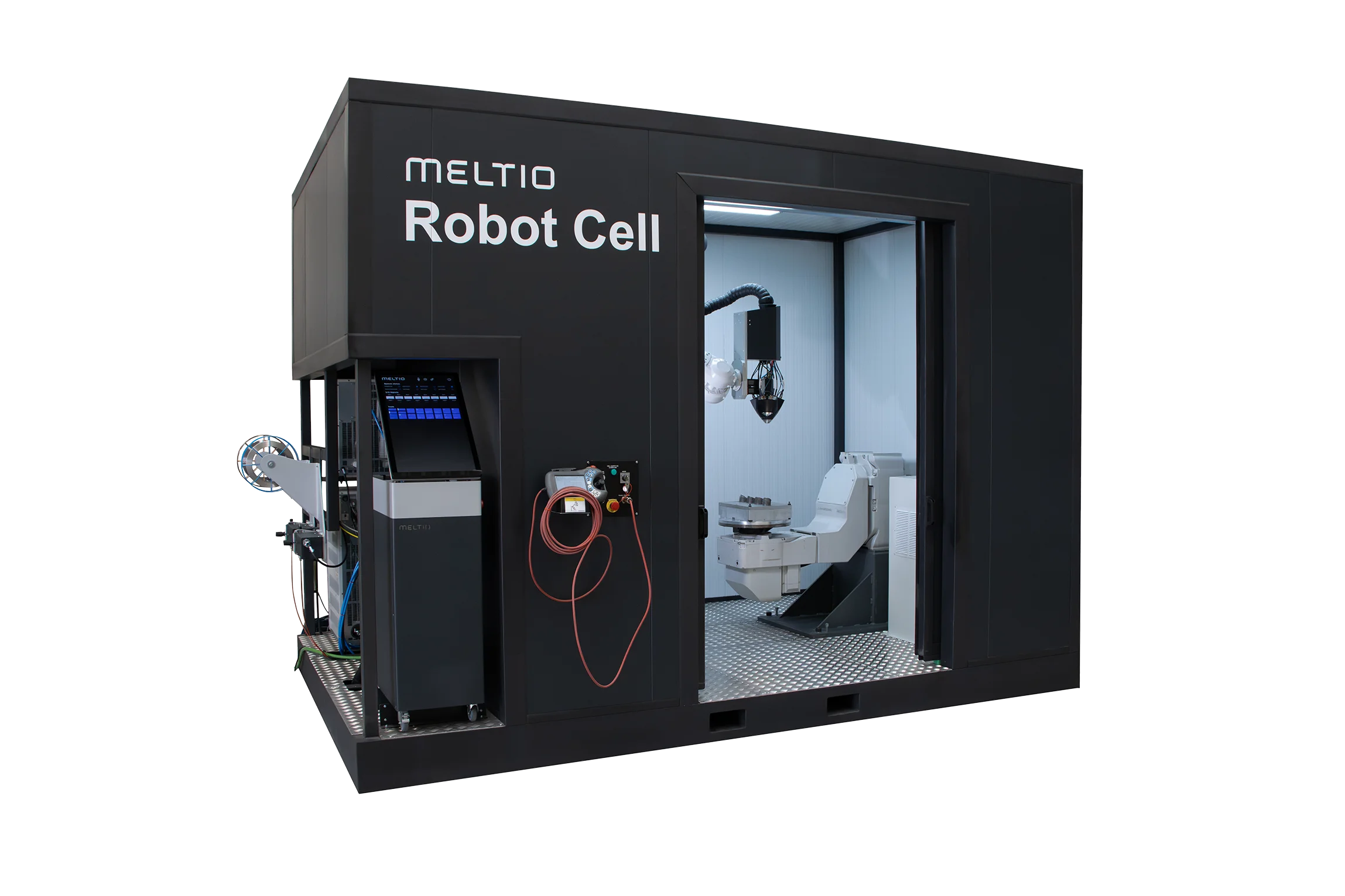

Robotic Metal 3D Printing Factory Cell

Deploy a Certified Robotic Metal 3D Printing Factory

Transform your manufacturing capabilities with a fully integrated Robotic Metal 3D Printing Factory Cell designed for industrial-scale additive manufacturing. Combining advanced robotic automation, multi-axis motion control, and cutting-edge laser deposition technology, this turnkey solution enables the production of complex metal components with unprecedented design freedom, precision, and scalability.

Built around a powerful 8-axis robotic platform, the system delivers exceptional flexibility for manufacturing large-format parts, complex geometries, and high-performance components across aerospace, automotive, defense, energy, marine, and industrial sectors.

Factory-Ready Deployment

The Robotic Metal 3D Printing Factory Cell arrives fully integrated, tested, and ready for production. Customers receive a complete manufacturing solution that minimizes installation complexity and accelerates time to production.

Every component, peripheral, safety system, and control interface is pre-configured and validated before shipment, allowing manufacturers to focus on part production rather than system integration.

Key Benefits

• Fully integrated turnkey metal 3D printing factory
• Ready-to-use production cell
• Rapid installation and commissioning
• Reduced implementation risks
• Faster return on investment
• Scalable manufacturing platform

Advanced 8-Axis Manufacturing Freedom

The system combines a high-performance industrial robot with synchronized positioner axes to provide full multi-axis metal deposition capabilities.

This advanced motion platform enables manufacturers to print complex geometries without traditional manufacturing constraints, reducing support structures and increasing design freedom.

Manufacturing Advantages

• Large-scale metal component production
• Complex geometry fabrication
• Multi-axis continuous interpolation
• Reduced material waste
• Improved production efficiency
• Enhanced part quality and accessibility

Tier-1 Industrial Hardware

Built using best-in-class industrial robotic systems and premium manufacturing components, the factory cell is engineered for continuous operation in demanding industrial environments.

The robust design ensures maximum reliability, precision, and long-term performance while meeting global industrial standards.

Industrial Features

• Premium industrial robotic arm integration
• Heavy-duty steel platform construction
• Precision motion control systems
• Industrial-grade electrical architecture
• Optimized cable management and wiring ducts
• Long-term operational reliability

CE Certified & Class 1 Laser Safety

Safety is built into every aspect of the system. The fully enclosed production environment complies with stringent European and North American safety requirements.

The laser-safe enclosure incorporates interlocked access doors, active laser windows, and comprehensive safety monitoring systems, ensuring safe operation while maintaining productivity.

Safety Features

• Class 1 Laser Product Certification
• Standard CE Certification
• Fully enclosed laser-safe operation
• Integrated safety interlocks
• Active laser protection windows
• Compliance with EU and US industrial safety regulations

Focus on Manufacturing Success

Beyond hardware delivery, the system includes on-site training and application support designed to help operators become productive quickly.

Comprehensive training programs enable users to master robotic metal additive manufacturing, optimize workflows, and develop production-ready applications in a short timeframe.

Training Benefits

• On-site installation assistance
• Operator training programs
• Application development guidance
• Manufacturing workflow optimization
• Faster production readiness
• Reduced learning curve

Unified Factory Control

The entire manufacturing cell operates through a centralized control architecture. All equipment, safety systems, robotic functions, and printing operations are managed from a single control panel, simplifying operation and reducing complexity.

This integrated approach improves productivity while enhancing process consistency and operational efficiency.

Meltio Engine Blue Integration Kit

The Meltio Engine Blue Integration Kit leverages advanced blue laser technology to improve energy absorption, increase process efficiency, and expand material compatibility.

Blue laser technology offers superior interaction with reflective metals compared to traditional infrared systems, enabling enhanced deposition performance and improved manufacturing flexibility.

Key Features

• 1000W Blue Laser System
• 9 × 450 nm Direct Diode Lasers
• Higher material absorption efficiency
• Wider range of compatible metal materials

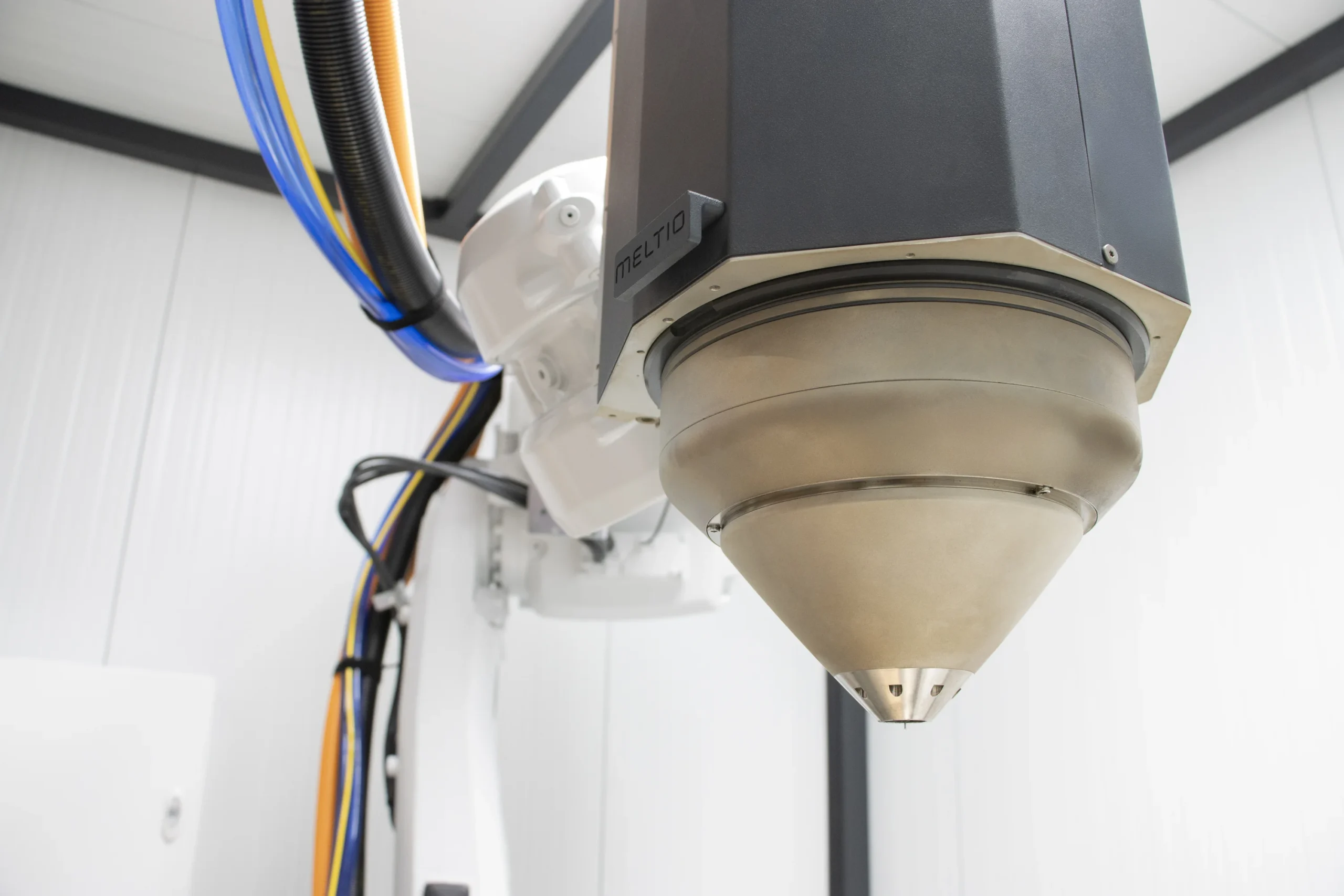

• Robot-mounted deposition head
• Closed-loop process control
• Real-time melt pool monitoring

Technical Specifications – Blue Laser System

Specification	Details
Laser Type	Blue Laser Direct Diode
Laser Power	1000 W
Laser Configuration	9 × 450 nm Direct Diode Lasers
Printhead Weight	20.5 – 23 kg
Printhead Dimensions	262 × 272 × 572 mm
Control Unit	Wall Mounted, Air Cooled
Control Unit Weight	80.5 kg
HMI Interface	Separate 27-inch Touchscreen
Cooling	Water-Cooled Deposition Head
Chiller	Included
Print Volume	Based on Robot Reach
Process Control	Melt Pool Camera & Closed-Loop Wire Modulation

Meltio Engine IR Integration Kit

For manufacturers requiring infrared laser processing, the Meltio Engine IR Integration Kit delivers proven wire-laser metal deposition technology with industrial-grade reliability and precision.

Key Features

• 1200W Infrared Laser System
• 6 × 976 nm Direct Diode Lasers
• Fiber and collimator-based architecture
• Closed-loop wire modulation
• Industrial production capability
• Flexible robotic integration

Technical Specifications – IR Laser System

Specification	Details
Laser Type	Infrared Laser
Laser Power	1200 W
Laser Configuration	6 × 976 nm Direct Diode Lasers
Printhead Weight	15.5 kg
Printhead Dimensions	230 × 310 × 710 mm
Control Unit	Floor Mounted with Wheels
Control Unit Weight	125 kg
HMI Interface	Integrated 27-inch Display
Cooling	Water-Cooled Control Unit & Deposition Head
Chiller	Included
Print Volume	Based on Robot Reach
Process Control	Closed-Loop Wire Modulation

Included Factory Cell Features

• Complete Robotic Manufacturing Cell
• Large Volume Metal 3D Printing Capability
• Continuous Positioner Axis Interpolation
• Anchored Equipment and Peripherals
• Unified Control Panel
• CE Certified Platform
• Steel Manufacturing Base with Leveling Points
• Integrated Wiring Ducts
• Factory Acceptance Tested System

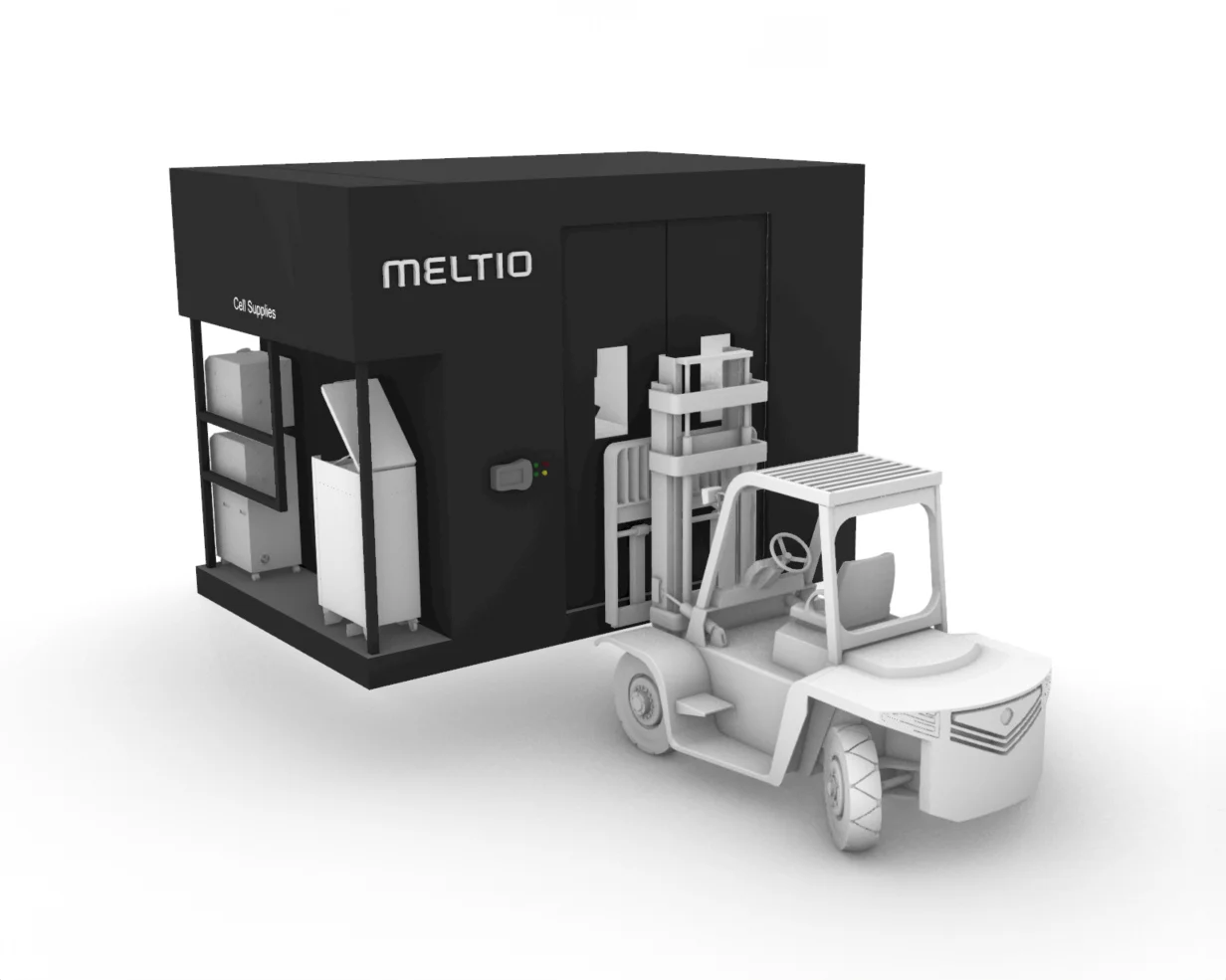

• Forklift-Compatible Transportation Design
• 300 × 400 mm Actively Cooled Build Platform
• Multiple Build Plates Included
• Meltio Space One-Year Subscription

Ideal Applications

• Aerospace Structural Components
• Automotive Tooling and Parts
• Defense Manufacturing
• Energy Industry Components
• Oil & Gas Equipment
• Marine Engineering Parts
• Industrial Tooling
• Research & Development
• Large-Scale Metal Additive Manufacturing
• Repair and Remanufacturing

Future-Proof Industrial Manufacturing

The Robotic Metal 3D Printing Factory Cell combines advanced robotics, intelligent process control, certified safety systems, and industry-leading metal additive manufacturing technology into a single turnkey solution. Designed for manufacturers seeking scalable, reliable, and production-ready metal 3D printing, it delivers the flexibility and performance required for the next generation of industrial manufacturing.
